Stainless Steel Ferrule Decorative Rope Cable Mesh For Garden Bridge Safety Mesh
SS Rope Mesh Product Description
The stainless steel rope net is made of stainless steel wire. The material of the wire is stainless steel: 201.304, 304L,316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.Two conventional types of stainless steel rope mesh.
Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.
The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

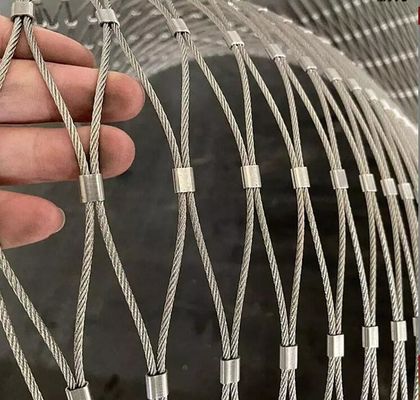

Ferrule is a classic. It is versatile, flexible and economical, especially with small rope diameters. The sleeves are made in a specially developed process in our factory by skilled workers. Webnet with sleeves is a good choice for all projects where design and cost-efficiency are of prime importance.
Knotted net is even more transparent than the version with sleeves while delivering practically identical strength values. Moreover, there are no troublesome light reflections from the sleeves. Consequently, sleeveless Webnet is ideally suited for strong and unobtrusive protective nets as well as for animal enclosures in zoo applications because it is easier to see through it when viewing the animals.
SS Rope Mesh Parameter
| Material |
stainless steel wire 304 316 |
| Rope diameter |
1.2mm 1.6mm 2.0mm 2.4mm 3.2mm 4.0mm 5.0mm |
| Mesh Opening |
25*25mm/30*30mm/50*50mm60*60mm /80*80mm/ 90*90mm/ 120*120mm |
| Feature |
Flexibility,high strength,rust resistance,recyclable,maintenance free |
| Boundary Dimension |
1*10m/2*5m/2*3m/10*10m |
SS Rope Mesh Advantages
Smooth surface,unique lines,the overall structure strong,generous appearance.Good toughness,strong clmbing ability,impact resistance,it is not easy damaged by outside force impact deformation,has excellent buffer.Product good transport installation,light connect fully,use long time,can and blends into the surrounding enviironment,hav played a very good decorative and protective effect.
SS Rope Mesh Applications
1.Steel Mesh Balustrade - bridge, stair, balcony, path
2.Cable Mesh - Excellent Solution to Safety
3.Safety Net -Structural Measure to Prevent Suicide
4.Helipad Safety Net - Modular Heliport Webbing
5.Cable Zoo Mesh - Solution to Enclosing Most Animals
6.Aviary Netting - Lightweight, Durable and Long Lasting
7.Green Facade - Cable System for Most Climbing Plants
